Equipment
Double independent Z axes
DSP A11
Panasonic, Yaskawa AC servo Motor
High performance air cooling spindle
Rolling ball screw transmission for X axis
Industrial cooling syste
Product Description

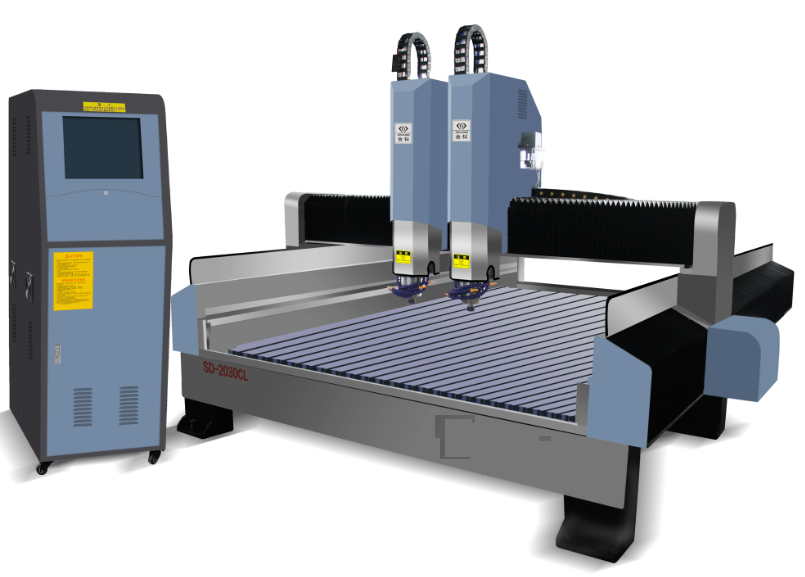

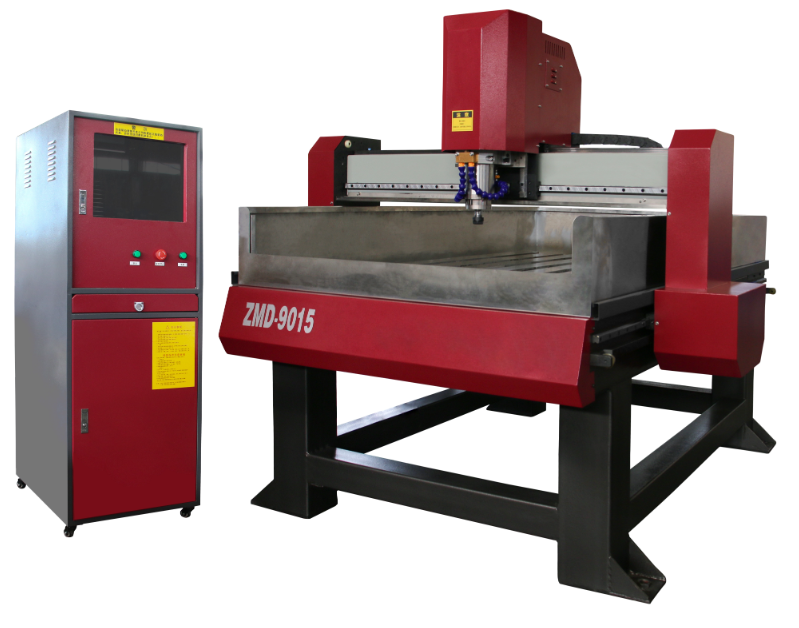

Stone Processing CNC Machine
Adopting imported linear square rail contributes to heavy loading, stable running, and high precision.
Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
Employing high precision preload rolling ball screw for Z axis endures High accuracy of engraving.
CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools
Integrated body with gantry movement design features rigidity and non deformation.
Specification
Features | Paratemer |
X/Y/Z stroke | 2000mm*3000mm*330mm |
Precision | ±0.05mm |
Repositioning | ±0.03mm |
Table structure | gantry moving |
X/Y/Z transmission | X/Y axes: rack ；Z axis：ball screw |
Max idle speed | 30000mm/min |
Max working speed | X/Y：15000mm/min ；Z axis：3000mm/min |
Spindle power | 380V/2X7.5KW water cool |
Spindle speed | 6000~24000r/min |
Drive system | AC servo |
Workiing voltage | AC220V/50Hz |
File format | G code/NC code/ENG code |
Controller | Nc studio |
Engraving Machine Standard
Control system: Nc Studio
Driver: Leadshine servo motor 1108
Spindle: 7.5kw water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body with large brackets
Table: T-slot aluminum table with stainless steel sink
Lubrication: Automatic oil lubricating system
Dust cover for X, Y axis
Patented box type brackets
Patented appearance
Optional
-Double independent Z axes
-DSP A11
-Panasonic, Yaskawa AC servo Motor
-High performance air cooling spindle
-Rolling ball screw transmission for X axis
-Industrial cooling syste

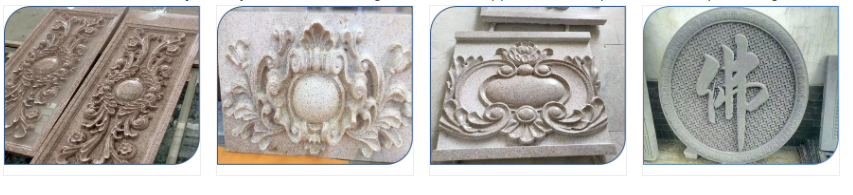

Application
Marble, Granite, Blue Stone, Jade, Crystal, Tomb Stone, Agate, Porcelain ,Glass, Plastic, Chemical Synthetic Board, Bamboo, Wood, Stainless Steel, Iron, Copper, Aluminum, Titanium Alloy.
Packaging & Shipping
Package Type: Each Equipment per polybag,then into a Wooden Case in the end
Shipping way: Please contact us for customized design and shipping fee
Our Services
Equipment Service Development
1. Your inquiry related to our equipment or prices will be replied in 24hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. OEM & ODM, any your customized lightings we can help you to design and put into product;
4. Packaging: Wooden case in English Language,also can as per customer’s requirments;
5. Delivery time: 45-60 days, which depend on quantity ordered.
